Digital wrench calibrator

A wrench calibrator designed for precise torque and tension verification. Displays both tension (kN) and torque (N·m) on dual screens for easy monitoring. Delivers exceptional accuracy of ±1%, ensuring reliable performance in professional calibration applications.

Product Details

Our wrench calibrator displays both tension (kN) and torque (N·m) on dual screens, ensuring clear and accurate readings with ±1% precision. Ideal for professional torque and tension verification.

Specifications

Model Max test torque Max test tension Voltage Applicate Max test bolt length Gross weight
SG-700K 3500N.m 700KM 220V
M20,M22,M24,M27,M30,M33
3/4″,7/8″,1″,1-1/8″,1-1/4″,1-3/8″
65-320mm 130kg

Wrench Calibrator Allows You to Verify:
Fasteners meet minimum bolt torque specifications.
Electric torque controlled wrenches are properly calibrated to achieve proper tension in the bolted joint.
Tension-control fasteners sheer off at the correct tension.
Direct Tension Indicating (DTI) washers are indicating at proper tension.
Bolting crew understands how to achieve proper tension in all types of fasteners.
For Accurate Measurement of Bolt Torque In Short Structural Fasteners

Whether calibrating power wrenches or testing fasteners, you need no special training, no additional equipment. Simply clamp the calibrator to a beam or column and insert your fastener. Tightening it gives a direct dial pressure reading equivalent to the tension created in the fastener — guaranteed accurate within 1% every time.

Does electric torque control wrench need calibrated? How?
Yes. Use Hitens Wrench Calibrator. First demonstrate with the calibrator that your tightening procedures produce proper bolt torque. Then consistently apply these procedures to the job itself.
Electric torque controlled wrench need to be calibrated before and after use in lab.
Calibration is necessary for Wrench Calibrators at least once a year to ensure that they are operating accurately and reliably. Your tools will be skillfully calibrated and returned to you in record time, so you can get back to work as soon as possible.

Why Choose HiTens

We have earned the trust of customers worldwide through reliable tools, precision engineering, and expert service.

Send us a message

Please fill out the form below with your inquiry or message, and our sales manager will respond as soon as possible.

Contact us today

Please enable JavaScript in your browser to complete this form.

Learn more from our FAQ

Learn how HiTens supports construction and industrial projects worldwide with reliable shear and torque wrenches, precision calibration, and professional support.

HiTens project1

Normally 1-2 days.
For 10+ sets need to check with us.

T/T , Western Union, LC.

Yes, how long do you need? We will special make for you.

Yes.

Wrench, socket, user manual.

Shear wrench, electric torque control wrench and accessories.

50+ YEARS
EXPERIENCE
FULL LINE OF WRENCH SOLUTIONS
GLOBAL PROJECT
SUPPORT

Related Products

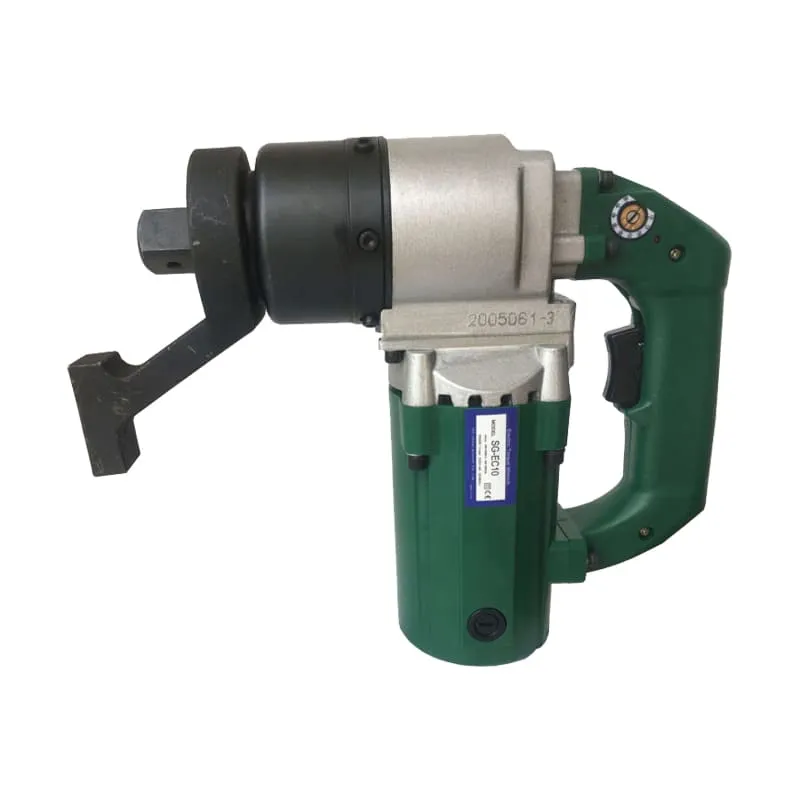

SG-EC10 electric torque wrench

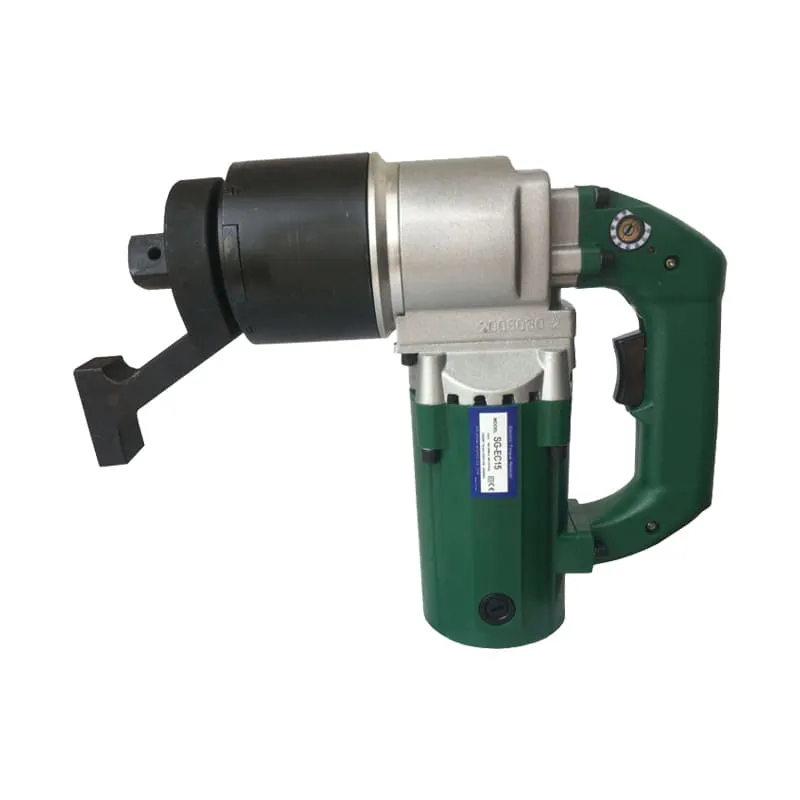

SG-EC15 electric torque wrench

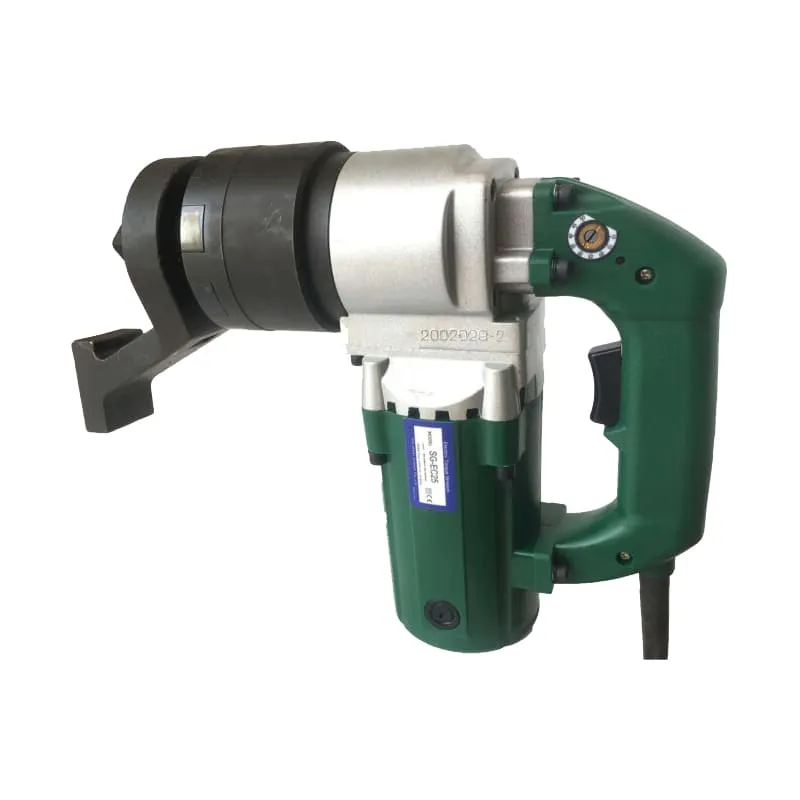

SG-EC25 electric torque wrench

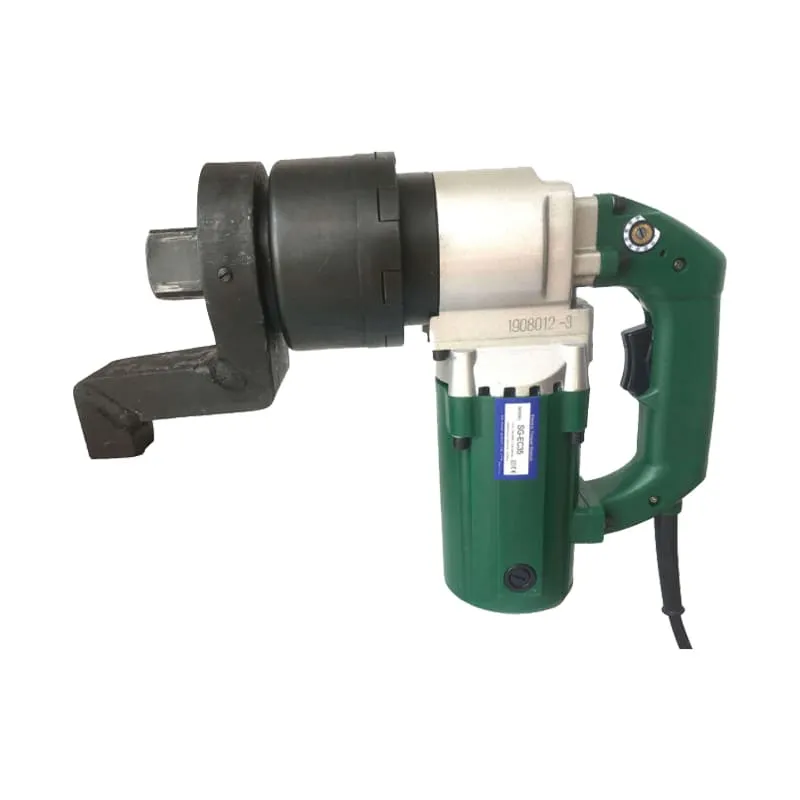

SG-EC35 electric torque wrench
